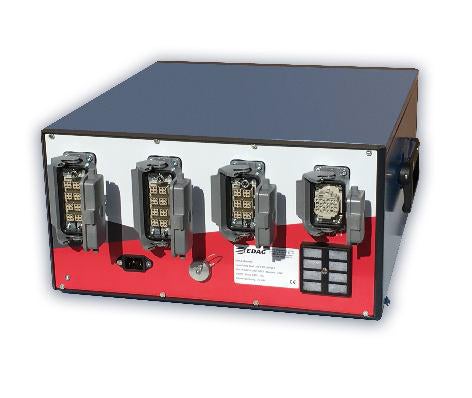

EDAG FUNCTIONAL TEST UNIT

Freely configurable diagnosis/test unit for H2 tank systems

The Functional Test Unit (FTU) can diagnose, test and operate a large number of H2 tank systems.An individual configuration of the system and the automated execution of routines are part of the technical scope.
  • Basis for the EDAG plant technology regarding H2 tank systems
  • Emptying and test routines for H2 tank systems
  • Programmable safety monitoring
  • Sensor inputs freely scalable
  • Logging of the measurement data
  • Mobile use possible
Link to the PDF: https://www.edag.com/fileadmin/Mediathek/Flyer_EN/Fahrzeugkompetenz/EDAG_WEBFLYER_FUNCTIONAL_TEST_UNIT_EN.pdf

Technical Information:

Supply voltage:
  • 12V / 24V
I/O:
  • 12x pressure sensor, 0-10V or 0-20mA
  • 12x resistance temperature detectors (RTDs), 50W - 300kW
  • 2x mass flow sensors, 0-10V or 0-20mA
  • 2x control valaves, 0-20mA
  • >12x magnetic valves
Interfaces:
  • Ethernet (for PC / Notebook)
  • USB for storing sensor & actuator data (CSV-Format)

Concrete use cases:

  • H2 tank system at the EDAG site in Bremen
  • H2 tank system at supplier site
  • Control of the mobile EDAG H2 filling station (in realization)
